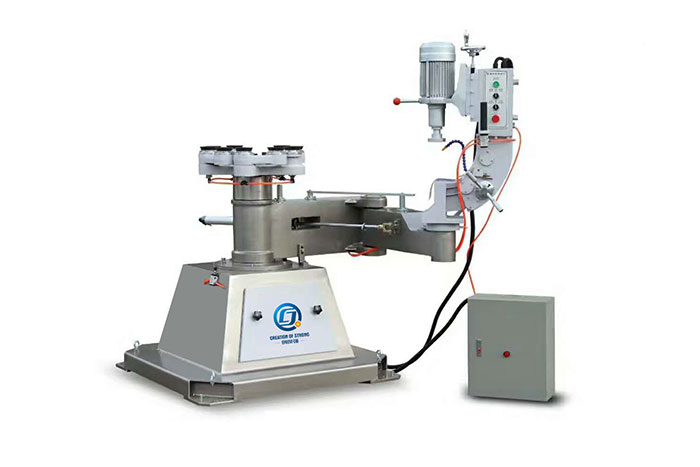

KT-1321 玻璃異形磨邊機
KT-1321 玻璃異形磨邊機

KT-1321適用于加工圓形、橢圓形及異形玻璃圓邊、鴨咀邊、方邊、斜邊的磨削、拋光。采用真空泵將玻璃吸附在吸盤上,配電機驅動衛星轉盤旋轉,轉盤旋轉速度可在工作時任意調速;可安裝三個磨輪進行粗、精磨和拋光。磨削斜邊時,安裝碗形磨輪,將磨頭向后傾斜,調節斜面角度,以端面磨削。

Suitable for grinding and polishing the outer edge with rouded or duckbillde shape for circle,oval and irregular flat glass.The processed glass isadsorbed onto a vacuum sucker,a spinning disc or an independent satellite disc,the speed of the spinning disc is adjustable.When grinding peripheries,coarse grinding,refine grinding and polishing are alternatively done by three griders.when grinding hypotenuses,the angle of the grinder on the bowel-shape wheel can be obliquely adjusted to fit the ground angle for grinding.
歡迎致電137-2465-0828,咨詢和訂購

產品詳情

主要技術參數  MAIN SPECIFICATIONS

玻璃加工厚度
Glass thickness

3-21mm

玻璃回轉直徑
Maximum diameter

 100-2100mm

斜邊角度
Bevel degree

  0-20°

最大斜邊寬
Max.Width of bevel

35mm

工作臺轉速
Rotating speed of working table
0.8-4 r/min
獨立轉盤轉速
Rotating speed of independent turnplate

1.2-6r/min

總功率
Power
 26W
總重量
Weight
1000kg
外形尺寸
Land occupation
1300×1300×1700mm
